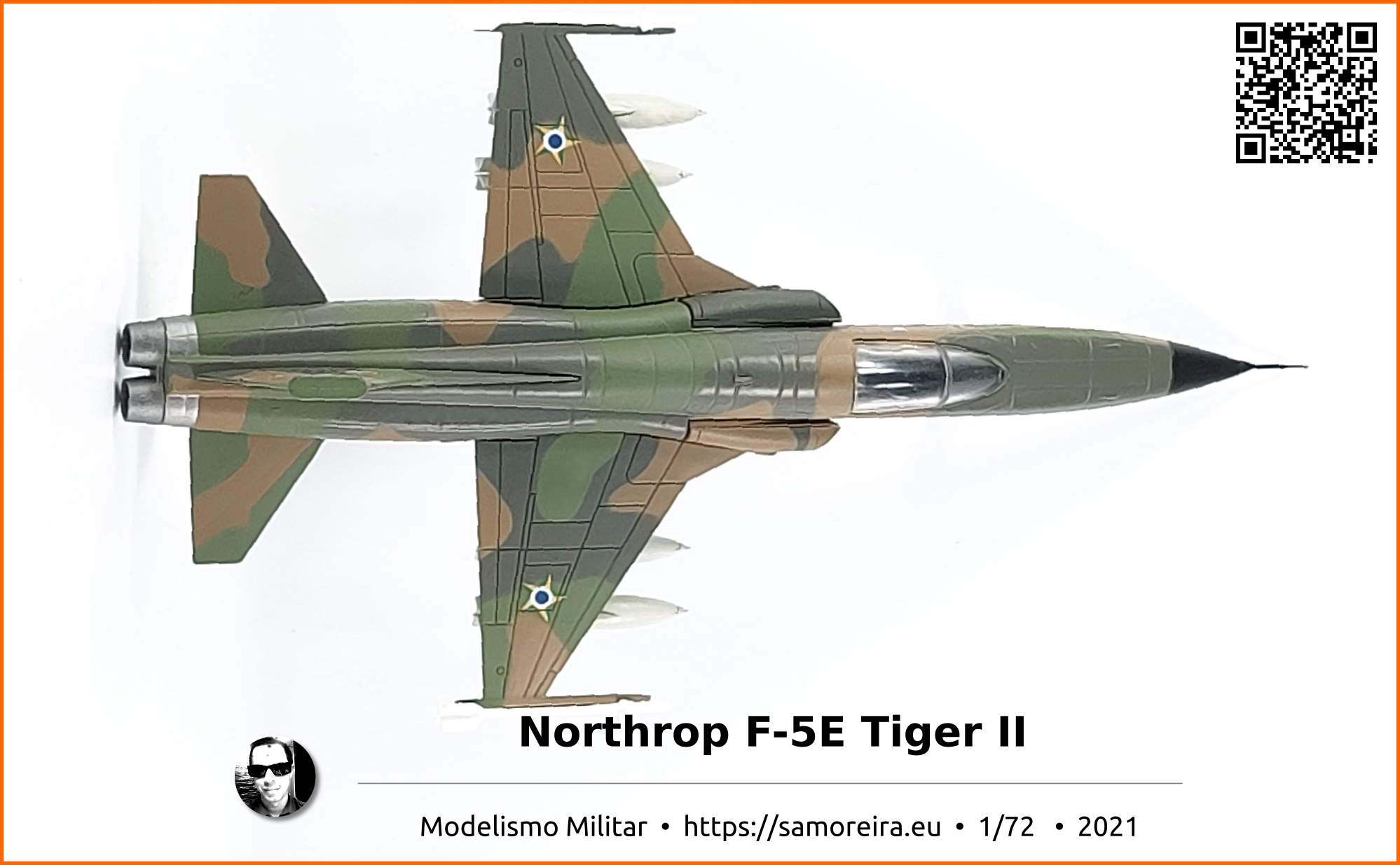

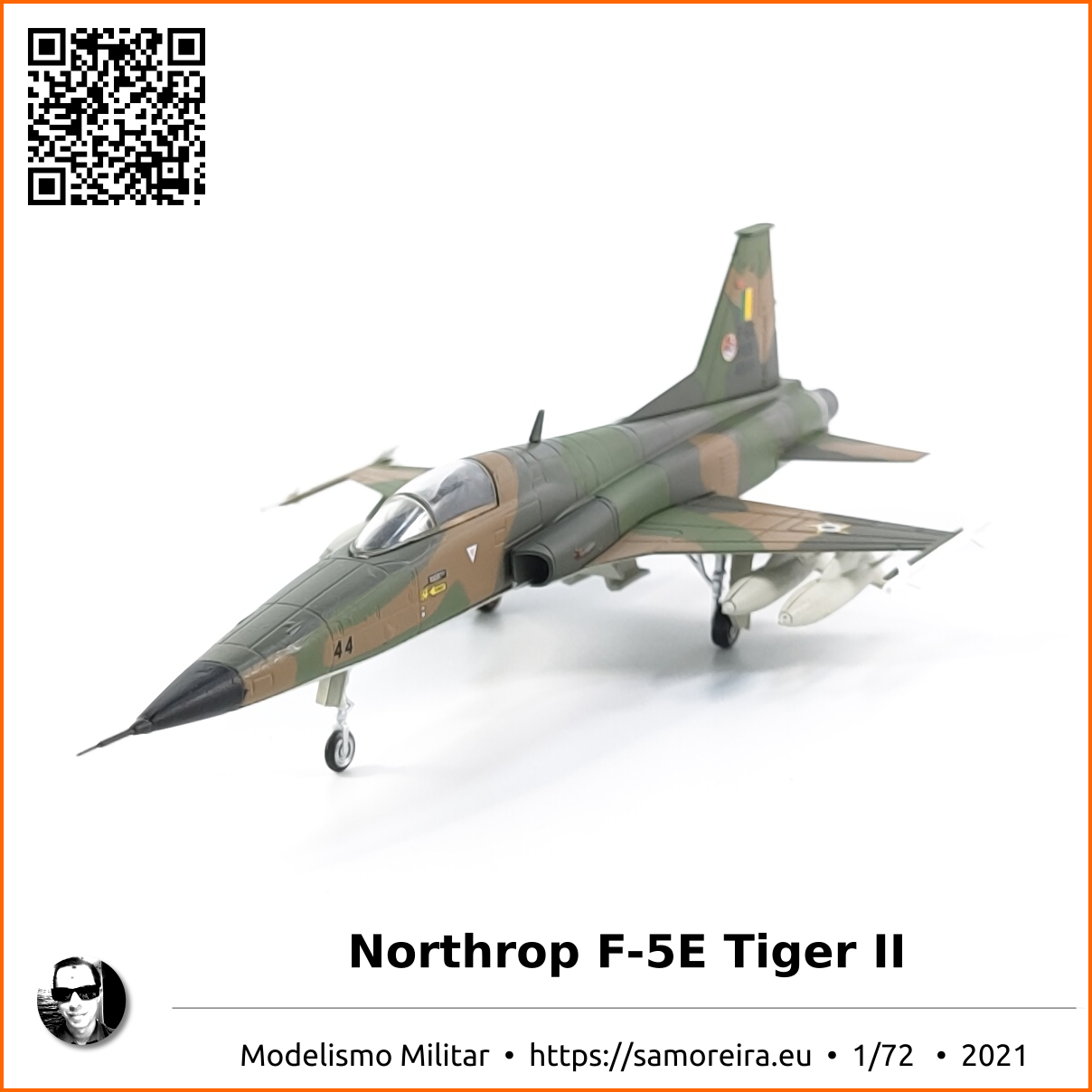

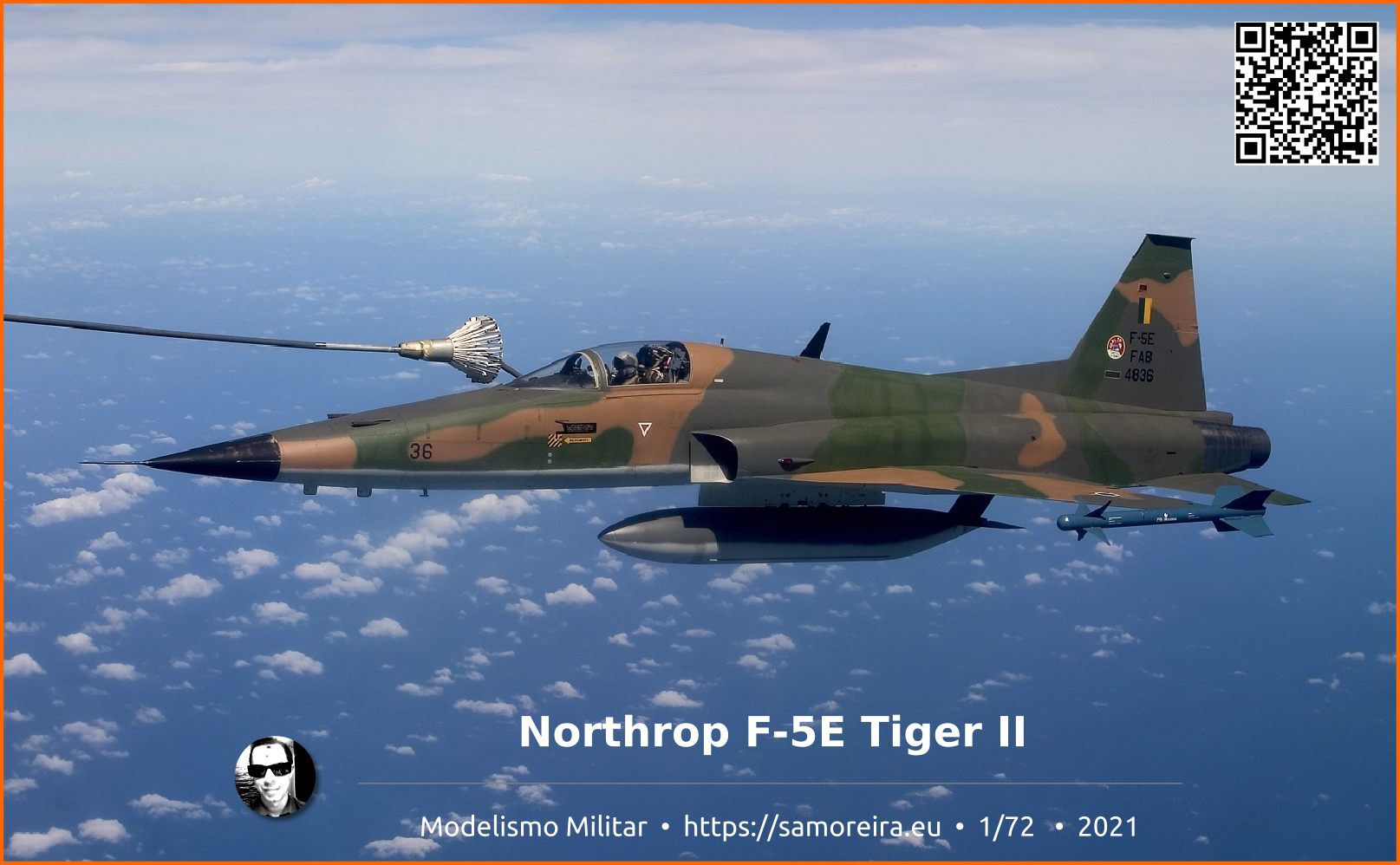

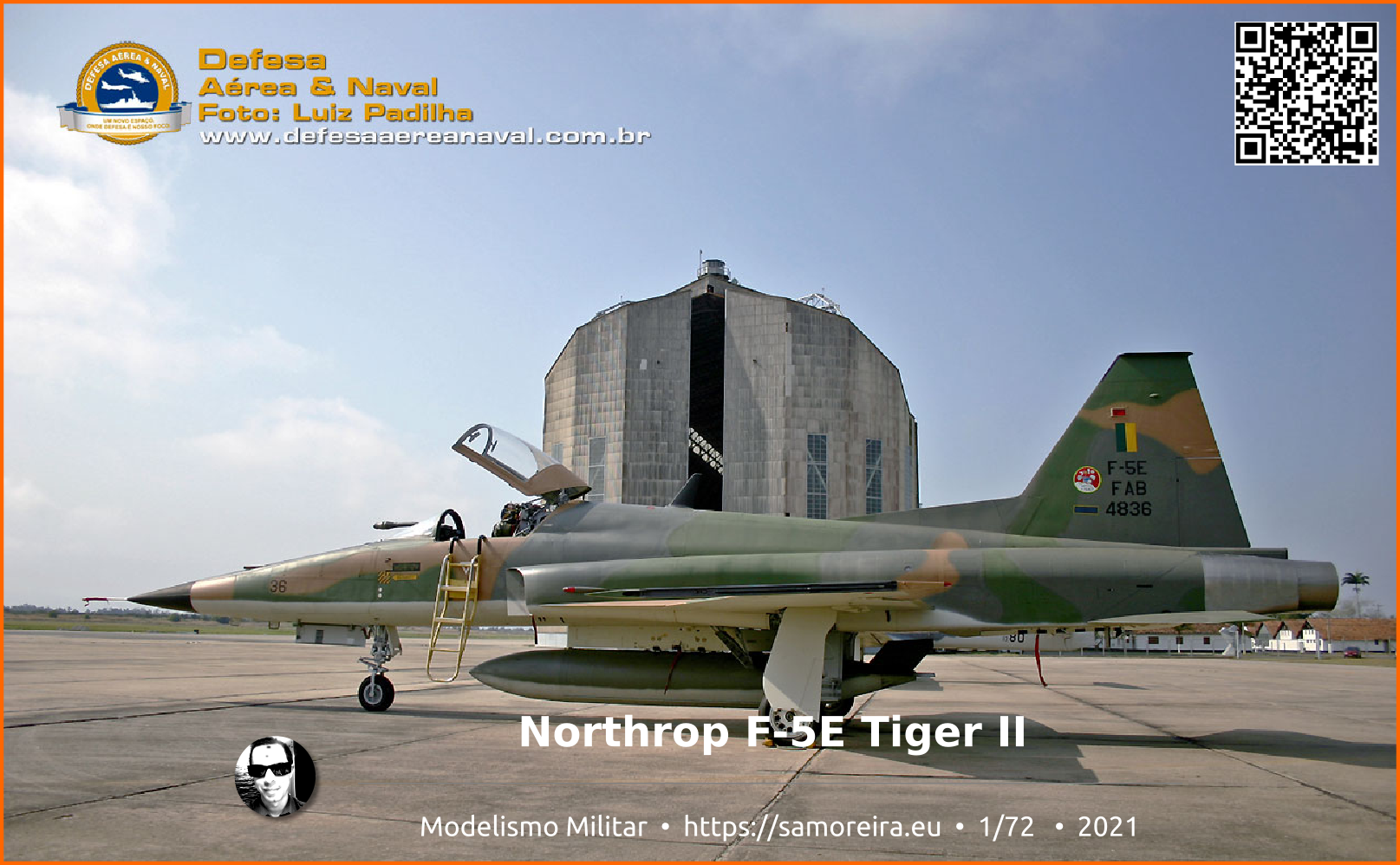

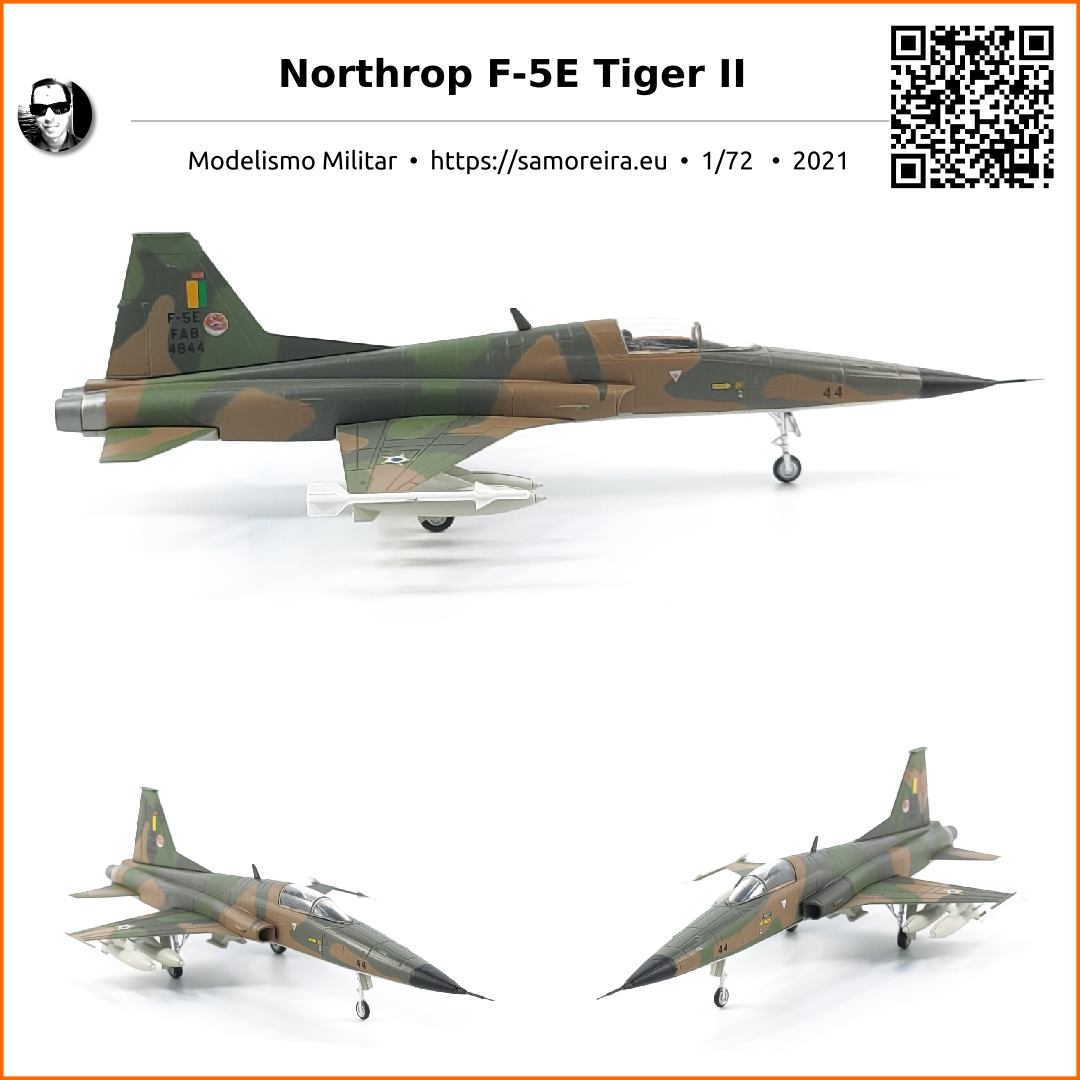

Northrop F-5E Tiger II Photo Album - Northrop F-5E Tiger II

reply Voltar

Northrop F-5E Tiger II

Share
0 views
  • Crew: 1
  • Length: 14,68 m
  • Wingspan: 8,13 m
  • Height: 4,08 m
  • Empty weight: 4.347 kg
  • Max takeoff weight: 11.192 kg
  • Powerplant: 2 × General Electric J85-GE-21 afterburning turbojet engines, 16 kN thrust each dry, 22 kN with afterburner
Performance
  • Maximum speed: Mach 1.63 at 11.000 m
  • Maximum cruise speed: Mach 0.98 at 11.000 m
  • Economical cruise speed: Mach 0.8 at 11.000 m
  • Range: 891 km clean
  • Combat radius (20 min reserve): 220 km with 2x Sidewinders + 2,400 kg ordnance, with 5 minutes combat at max power at sea level
  • Service ceiling: 15,800 m


  • Armament
  • Guns: 2× 20 mm M39A2 Revolver cannon in the nose, 280 rounds/gun
  • Rockets:
    • 2× LAU-61/LAU-68 rocket pods (each with 19× /7× Hydra 70 mm rockets, respectively); or
    • 2× LAU-5003 rocket pods (each with 19× CRV7 70 mm rockets); or
    • 2× LAU-10 rocket pods (each with 4× Zuni 127 mm rockets); or
    • 2× Matra rocket pods (each with 18× SNEB 68 mm rockets)
  • Missiles:
    • AIM-9 Sidewinder air-to-air missile
    • AIM-120 AMRAAM air-to-air missile
    • AGM-65 Maverick air-to-surface missiles
  • Bombs:
    • A variety of air-to-ground ordnance such as the Mark 80 series of unguided bombs
    • GBU-24/49/52/58 cluster bomb munitions
    • napalm bomb canisters and M129 Leaflet bomb
    • and laser-guided bombs of Paveway family
